Panchi stainless steel fermentation tank is designed for beer brewing, wine production, food processing, and biotechnology applications. As a professional beer fermentation tank, it provides reliable fermentation performance with precise temperature control, efficient yeast sedimentation, and hygienic processing conditions.

This stainless steel fermentation vessel adopts SUS304 or SUS316L stainless steel construction, combined with a 60° cone bottom design, honeycomb cooling jacket, and low-speed agitation system. The optimized structure improves fermentation efficiency, simplifies cleaning, and ensures stable product quality.

The wine fermentation tank is also suitable for fruit wine, dairy products, probiotic beverages, and microbial fermentation processes. Available capacities range from 300L to 3000L, with customized options including CIP cleaning system, sanitary sampling valve, pressure monitoring, temperature control, and other accessories according to different production requirements.

Core Value Propositions

---

• Hygienic Stainless Steel Construction The fermentation tank adopts food-grade SUS304/SUS316L stainless steel materials, providing excellent corrosion resistance and long service life. The inner tank surface is mirror polished and pickled to reduce bacterial adhesion and improve sanitation performance.

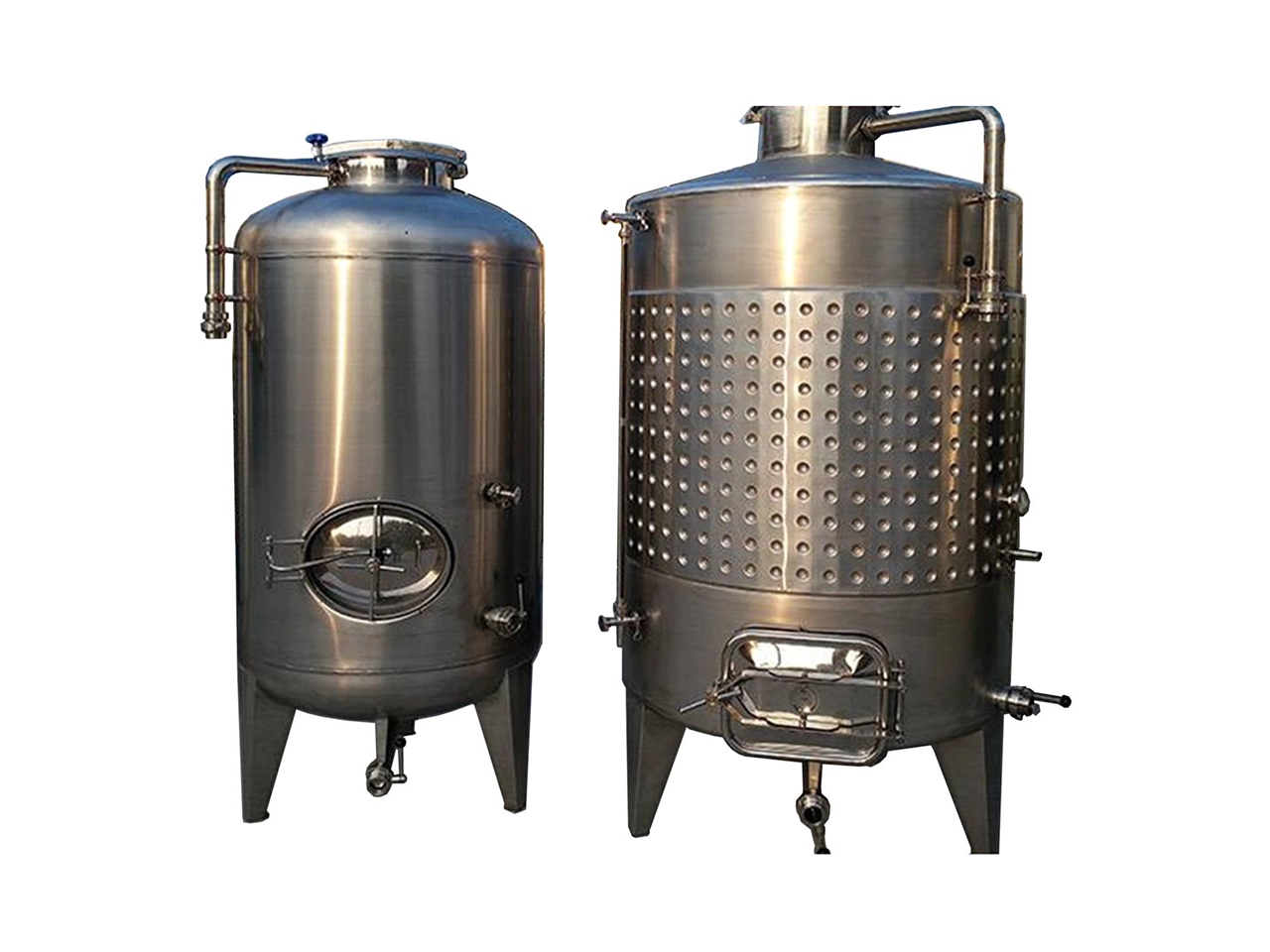

• Efficient Honeycomb Cooling Jacket Design The fermentation tank uses a honeycomb (dimple plate) cooling jacket structure to improve heat transfer efficiency. Compared with traditional jacket systems, the optimized cooling channel design helps control refrigerant flow direction and provides faster temperature reduction during fermentation.

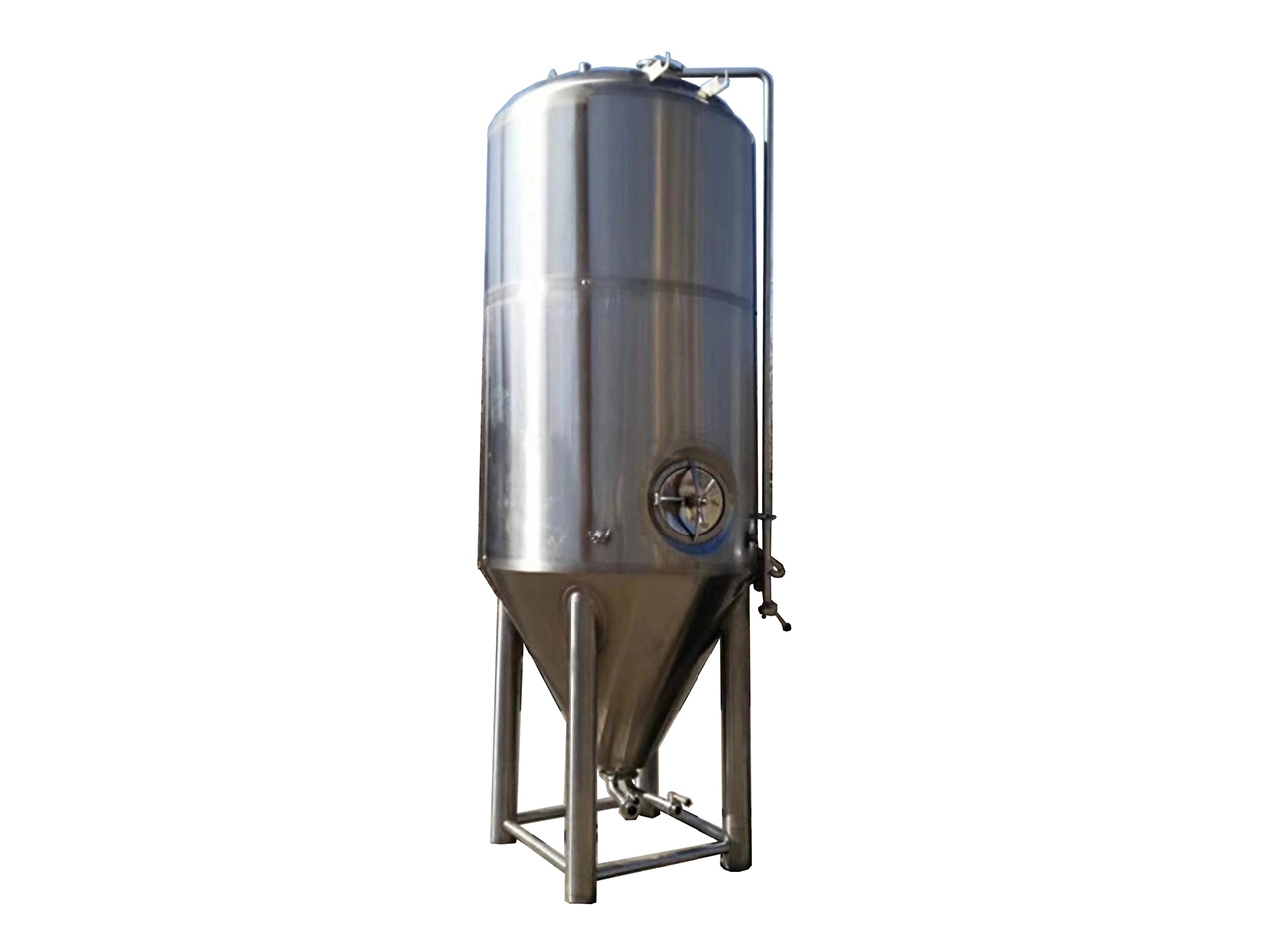

• 60° Cone Bottom Structure for Efficient Yeast Discharge The specially designed 60° cone bottom allows yeast sediment to naturally collect at the bottom of the tank. This structure minimizes friction between yeast slurry and tank walls, improving yeast discharge efficiency and simplifying cleaning operations.

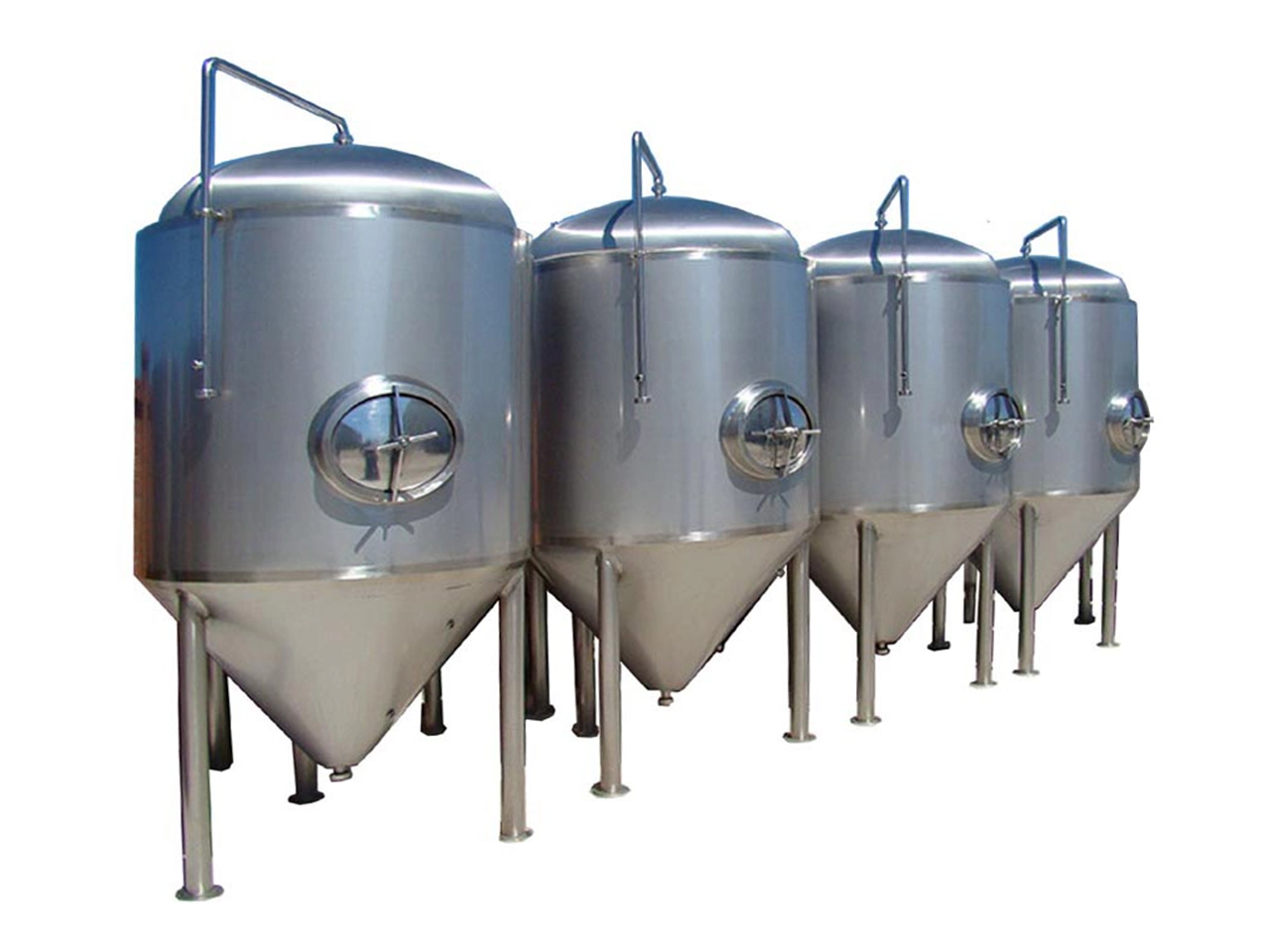

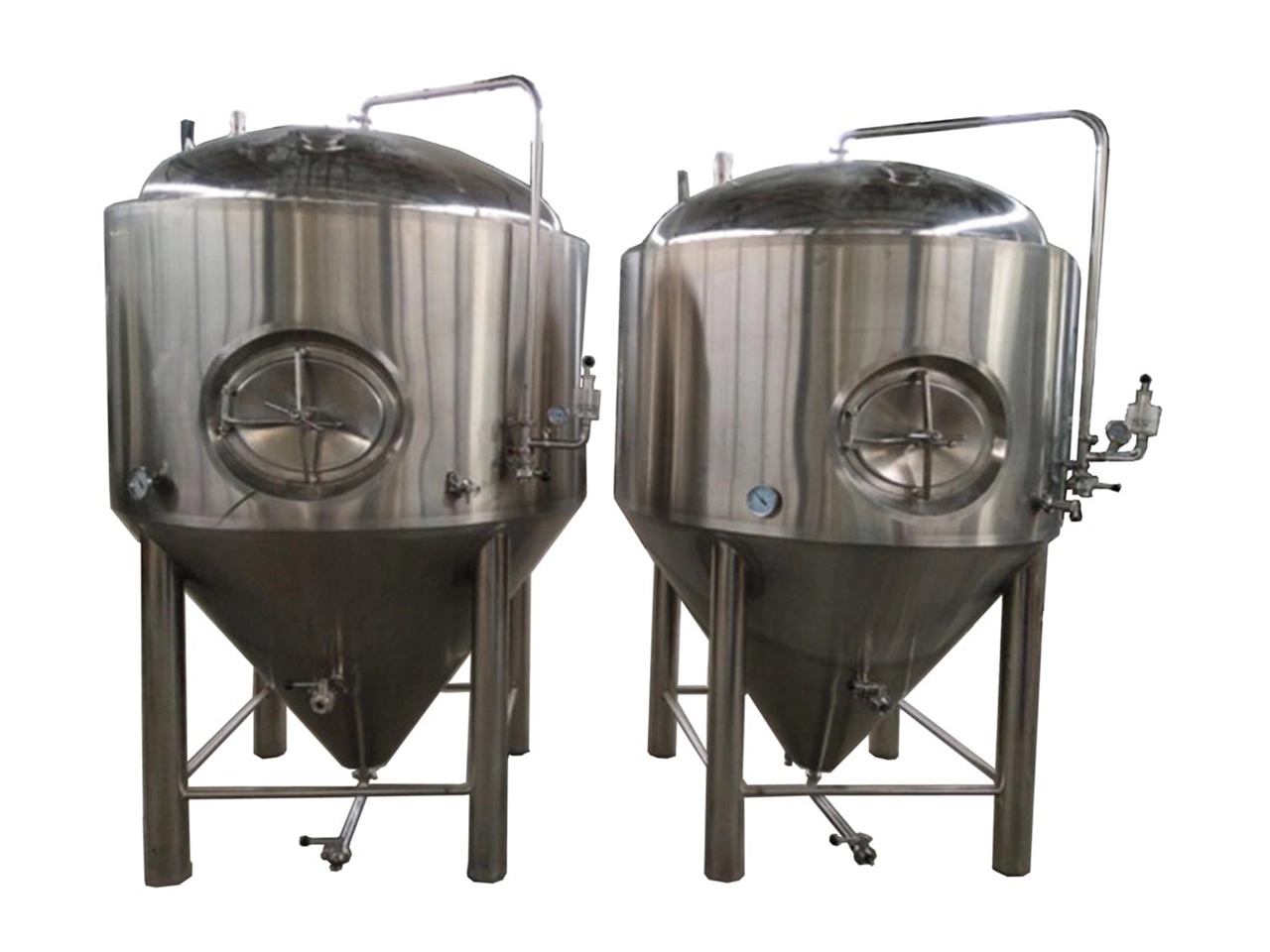

• Side Oval Manway for Easy Cleaning The ergonomic side oval manway design allows operators to inspect and clean the tank conveniently without climbing to the top of the vessel.

Primary Application Scenarios

---

🍺 Beer Brewing Industry

• Used as a professional beer fermentation tank for craft breweries and commercial beer production.
• The 60° cone bottom design supports yeast sedimentation, recovery, and efficient discharge.
• The cooling jacket helps maintain stable fermentation temperatures for consistent beer quality.

🍷 Wine Production

• Suitable as a wine fermentation tank for grape wine, fruit wine, and other fermented beverages.
• Stainless steel construction prevents contamination and ensures hygienic fermentation conditions.
• Precise temperature control helps improve fermentation stability and final product quality.

🥛 Dairy & Beverage Processing

• Applied for yogurt, probiotic drinks, fermented milk products, and other beverage fermentation processes.
• The sanitary design and CIP cleaning system improve production hygiene and operational efficiency.

🧬 Biotechnology & Microbial Fermentation

• Used as a sanitary fermentation vessel for yeast cultivation, microbial growth, and biological fermentation.
• Supports customized configurations for different biological process requirements.

🌿 Food & Specialty Fermentation

• Suitable for fermented food production, including vinegar, enzyme production, and other food biotechnology applications.
• Flexible capacity options from 300L to 3000L meet both pilot-scale and small industrial production needs.

Model	Volume	Tank Diameter	Tank Height	Motor Power	Agitation Speed	Working Pressure	Working Temperature
PCFT-300L	300L	800mm	600mm	0.55kW	36 RPM	≤0.09MPa	<100℃
PCFT-400L	400L	800mm	800mm	0.55kW	36 RPM	≤0.09MPa	<100℃
PCFT-500L	500L	900mm	800mm	0.55kW	36 RPM	≤0.09MPa	<100℃
PCFT-600L	600L	1000mm	800mm	0.55kW	36 RPM	≤0.09MPa	<100℃
PCFT-800L	800L	1000mm	1000mm	0.75kW	36 RPM	≤0.09MPa	<100℃
PCFT-1000L	1000L	1200mm	1000mm	0.75kW	36 RPM	≤0.09MPa	<100℃
PCFT-1500L	1500L	1300mm	1200mm	1.5kW	36 RPM	≤0.09MPa	<100℃
PCFT-2000L	2000L	1300mm	1500mm	2.2kW	36 RPM	≤0.09MPa	<100℃
PCFT-3000L	3000L	1600mm	1500mm	3kW	36 RPM	≤0.09MPa	<100℃
