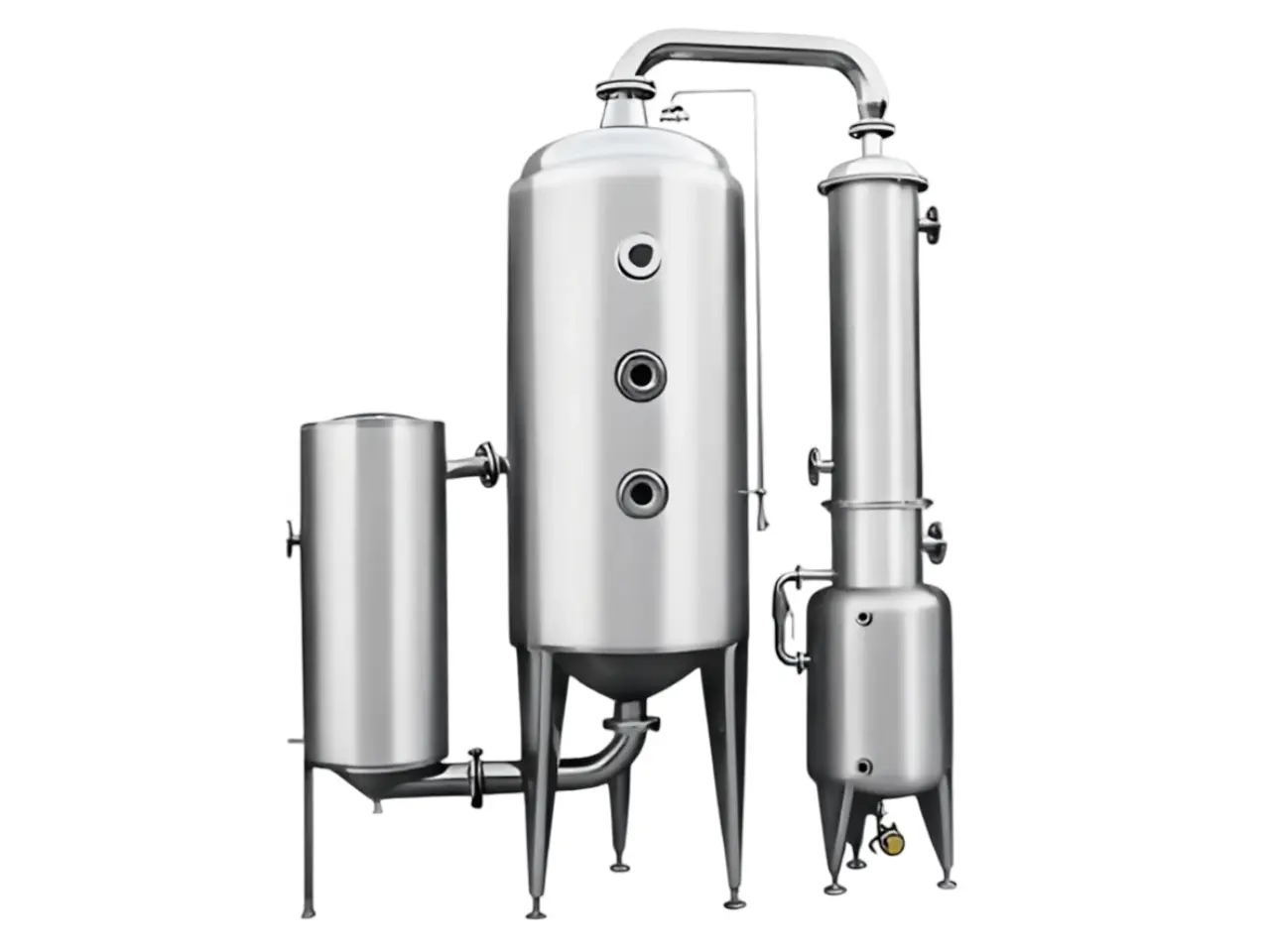

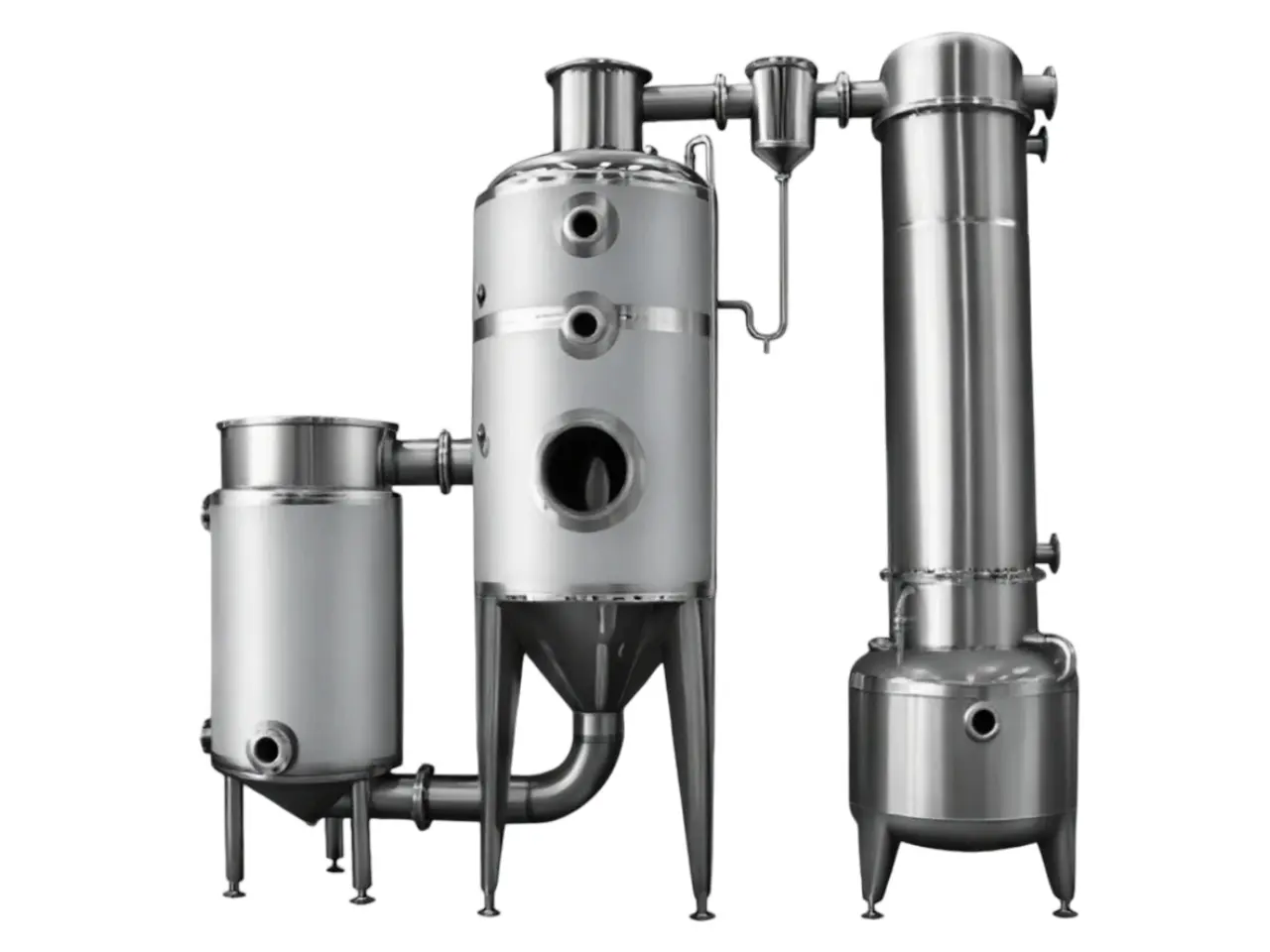

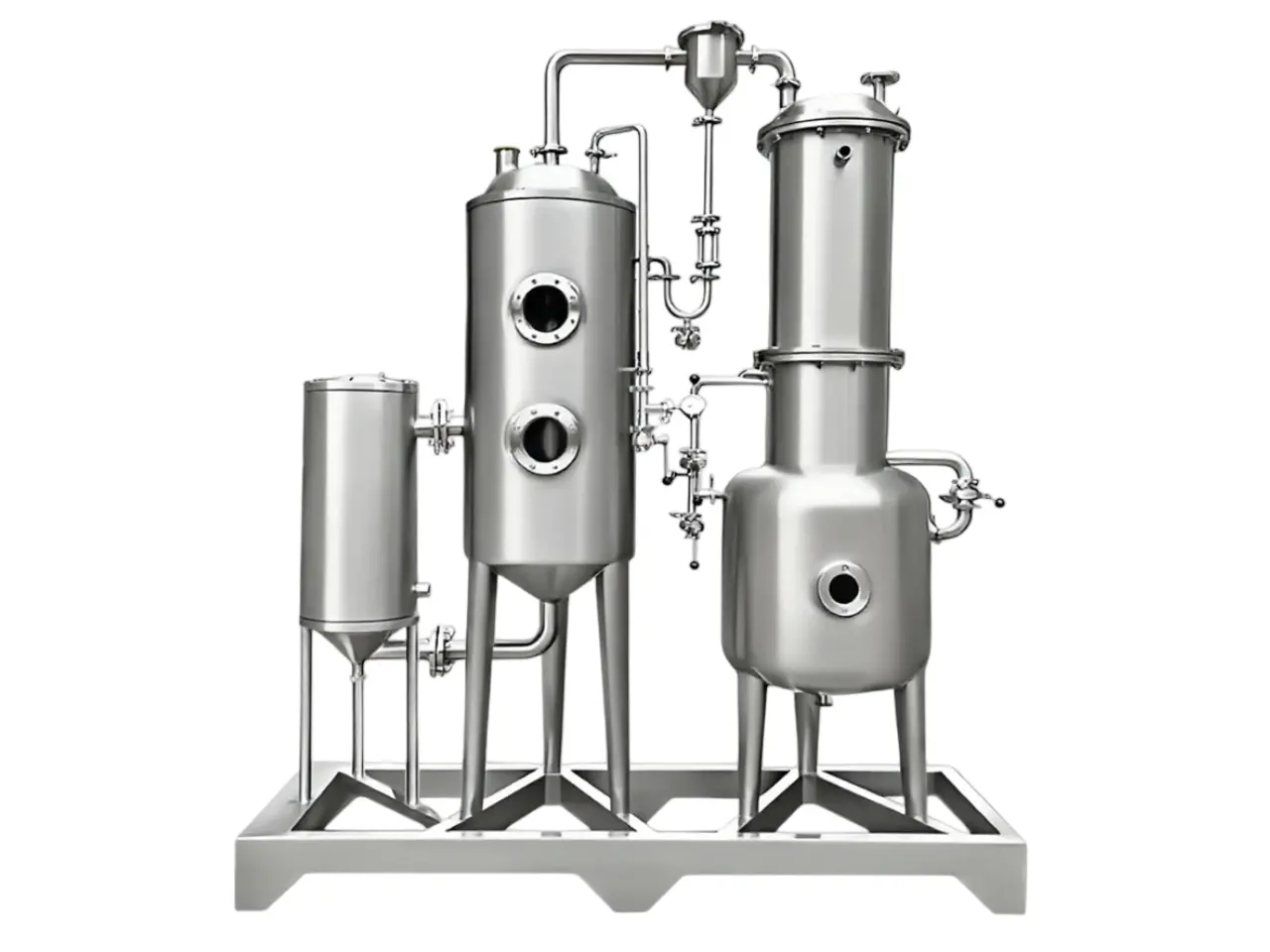

Answer: The Single-Effect External Circulation Vacuum Concentrator is engineered to provide a rapid evaporation rate by separating the heating and separation chambers. In this system, the liquid material circulates at high velocity through the external heater before flashing into the vacuum separator. This high-speed flow creates a large temperature difference between the heating medium and the boiling liquid, which accelerates heat transfer. This design is perfect for achieving 100% consistency in small to medium-sized batches, ensuring that the concentration process is both stable and excellent in output.

Answer: In our External Circulation Vacuum Concentrator, the contact time between the raw material and the high-temperature heating tubes is significantly minimized. Because the liquid moves through the tubes at high speed, it prevents the localized overheating that often occurs in traditional stagnant tanks. This “Master” level of thermal management ensures that the biological activity and natural color of the product are preserved. For laboratories processing delicate herbal extracts or food syrups, this sturdy design provides an extraordinary layer of protection against thermal degradation.

Answer: By utilizing a high-efficiency vacuum pump, the Single-Effect Vacuum Concentrator reduces the internal atmospheric pressure, which effectively lowers the boiling point of water or solvents to as low as 45°C to 60°C. This low-temperature environment is ideal for preventing the oxidation and caramelization of sugars and proteins. Our expert engineering team ensures that the vacuum degree remains stable throughout the entire run, providing absolute protection for heat-sensitive compounds while maintaining a successful and high-speed evaporation rate.

Answer: We construct all contact parts from high-grade 304SS (or optional 316L) for this Single-Effect Vacuum Concentrator to ensure a non-reactive and corrosion-resistant environment, meeting the most rigorous GMP and food safety standards. To further enhance hygiene, the interior surfaces are mirror-polished to a Ra < 0.4μm finish. This extremely smooth surface minimizes “material hang-up” and inhibits the formation of scale or material buildup during long production cycles. This reliable construction makes the cleaning-in-place (CIP) process effortless and ensures that your production line remains professional and sanitary.

Answer: The unit features an integrated shell-and-tube condenser with a large heat-exchange surface area. As the vaporized solvent enters the condenser, it is rapidly cooled by circulating water, allowing for a solvent recovery rate of over 95%. This high efficiency is extraordinary for reducing the cost of raw materials and preventing the release of volatile organic compounds (VOCs) into the atmosphere. This makes the External Circulation Vacuum Concentrator an environmentally responsible and cost-effective solution for industrial solvent-intensive concentration processes.
