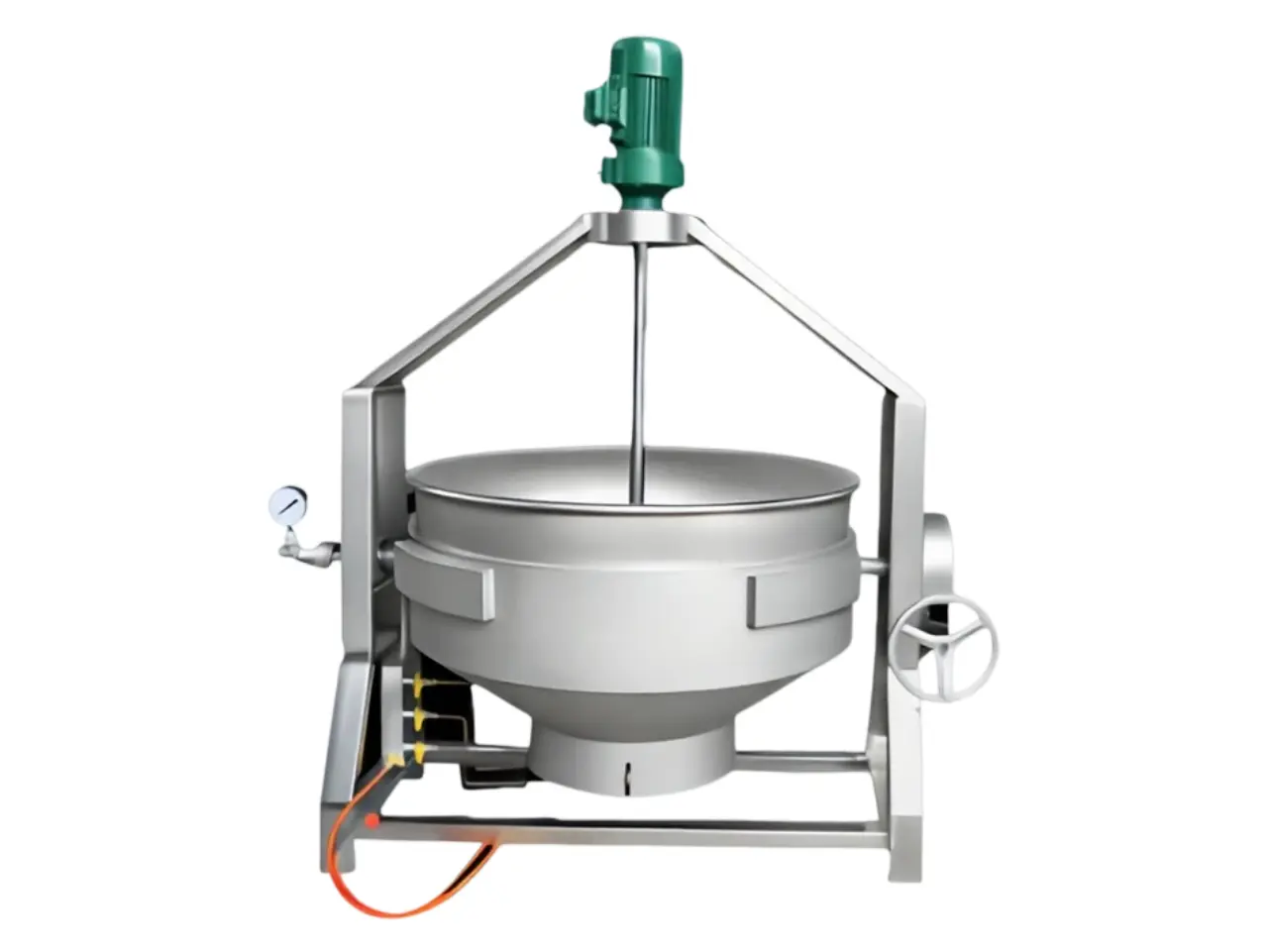

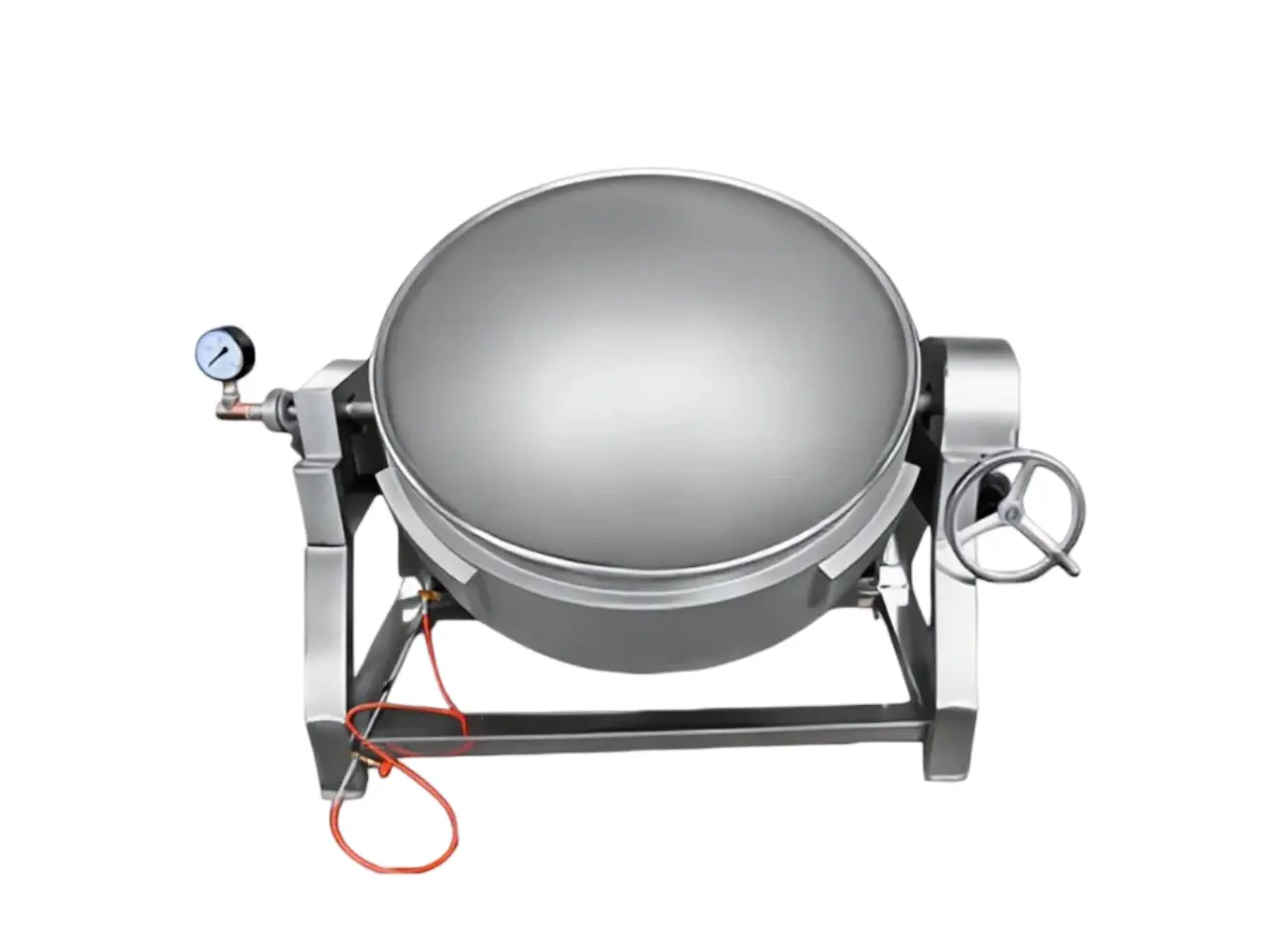

This Gas Heating Jacketed Cooking Kettle utilizes Natural Gas or LPG as the heat source. It is an efficient, large-scale cooking device designed for central kitchens and food processing plants. Featuring a large heating area and high thermal efficiency, it ensures rapid and uniform heating. With its smoke-free, dust-free combustion and advanced stirring system, it is the ideal equipment for improving product quality, shortening working hours, and optimizing labor conditions.

Core Value Propositions

---

• Powerful Energy-Saving Burner: Features an advanced combustion system that delivers a “fierce fire” with 25% higher thermal efficiency than standard burners. This design reduces gas consumption by 20% while ensuring smoke-free, dust-free operation.
• Precision PTFE Stirring System: Outfitted with heat-resistant, food-grade PTFE (Teflon) scraping teeth. These are non-toxic, non-stick, and highly corrosion-resistant, ensuring that even the most viscous materials move smoothly without scorching.
• Ergonomic Worm Gear Tilting: The vessel utilizes a precision worm wheel mechanism, allowing the operator to manually tilt the pot up to 90°. This ensures a clean, controlled discharge and significantly reduces physical labor intensity.
• Quiet & Stable Drive Train: Equipped with a high-performance horizontal turbine reducer. This system of Gas Heating Jacketed Kettle provides stable, low-noise torque for the agitator, wrapped in a sleek, industrial-grade housing for maximum durability.

Primary Application Scenarios

---

Central Kitchens & Large-Scale Catering: The premier choice for hotels, universities, and corporate canteens for boiling high-volume soups, stews, meats, and porridges.

Industrial Food Processing: Ideal for the Gas Heating Jacketed Kettle of thick sauces, fruit jams, dairy-based fillings, and other viscous ingredients that require constant movement during heating.

Mining & Remote Site Feeding: Designed for heavy-duty, continuous use in industrial enterprises and mining camp mess halls for efficient, large-scale meal preparation.

Specialty Food Crafts: Perfect for candy making, syrup concentration, and traditional decoction where precise flame control and constant stirring are critical.

Solutions to Critical Technical Challenges

---

• Slashing Operational Utility Costs: Our energy-saving burner maximizes heat conversion and minimizes carbon deposition, directly lowering your monthly gas overhead.
• Preventing Material Adhesion & Loss: The highly lubricated PTFE teeth prevent “pot-sticking,” ensuring 100% product yield and drastically reducing the time needed for end-of-shift cleaning.
• Optimizing the Working Environment: The smoke-free combustion eliminates indoor air pollution and minimizes radiant heat loss, keeping your kitchen cooler and safer for staff.
• Safe High-Volume Discharge: Traditional large pots are difficult to empty. Our stable, positioned tilting handle allows for accurate, light-touch pouring of boiling liquids without the risk of splashing.

Volume	Caliber	Deep pot	Material	thickness	Dimensions	Fan Power
100L	800mm	400mm	304 Stainless Steel	3mm	1480*1070*1000	100w/220V
200L	900mm	450mm	304 Stainless Steel	3mm	1580*1170*1070	100w/220V
300L	1000mm	530mm	304 Stainless Steel	3mm	1680*1270*1120	100w/220V
400L	1100mm	630mm	304 Stainless Steel	3mm	1780*1370*1170	100w/220V
600L	1200mm	680mm	304 Stainless Steel	4mm	1880*1470*1270	100w/220V
800L	1300mm	830mm	304 Stainless Steel	5mm	1980*1570*1320	100w/220V
1000L	1400mm	900mm	304 Stainless Steel	5mm	2200*1900*2400	100w/220V
